Parameter	Nominal Flow Rate	Max Pressure	Recommended Viscosity	Ambient Temperature Range	Structure	Controlling Method
Specification	40 L/min	250 bar	15–75 mm²/s	−40°C to +80°C	Monoblock: 1-7 sections	Manual, Hydraulic, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Joystick, Joystick and Cable, Micro Switch

Applications of RYLSUN P40 Hydraulic Control Valve

The RYLSUN P40 hydraulic control valve is widely used in agricultural equipment, tractors, loaders, hydraulic presses, forklifts, road construction machinery, municipal equipment, and industrial hydraulic systems. Its flexible control configuration and compact monoblock structure make it suitable for both stationary and mobile hydraulic applications.

The valve supports multiple hydraulic circuit configurations and can be integrated into hydraulic power packs, lifting systems, conveyors, hydraulic cylinders, and material handling equipment. The power beyond option also allows additional hydraulic functions for more complex hydraulic system requirements.

OEMs, hydraulic equipment manufacturers, and hydraulic system integrators prefer the RYLSUN P40 hydraulic control valve because of its durability, easy installation, and versatile operational control. The valve’s efficient flow management helps improve machine productivity and hydraulic system efficiency.

Features of RYLSUN P40 Hydraulic Control Valve

1. Integrated Check Valve

The built-in check valve prevents hydraulic oil from flowing backward within the hydraulic circuit. This helps maintain stable system pressure and improves overall hydraulic efficiency and operational safety.

2. Adjustable Relief Valve

The internal relief valve allows users to adjust the hydraulic system working pressure according to application requirements. This feature helps protect hydraulic components from excessive pressure and improves system reliability.

3. Flexible Oil Flow Configuration

The RYLSUN P40 hydraulic control valve features a parallel circuit design with an optional power beyond function. This configuration supports additional hydraulic operations and enhances system flexibility for various hydraulic applications.

4. Multiple Control Options

The valve is available with manual, pneumatic, hydraulic, electric, electro-pneumatic, and electro-hydraulic control options. These versatile actuation methods make the valve suitable for a wide range of industrial and mobile equipment applications.

5. Robust Monoblock Construction

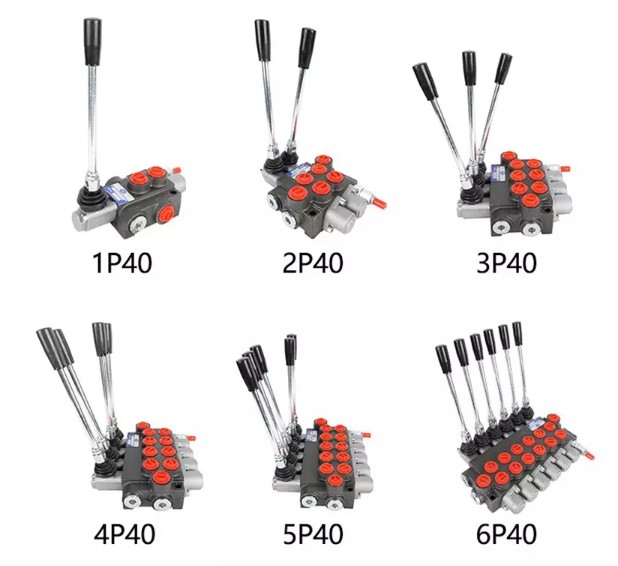

The durable monoblock valve body provides high structural strength and long service life. Available in configurations from 1 to 7 levers, the valve can be customized to meet different hydraulic system requirements.

6. Versatile Spool Functions

The valve supports multiple spool configurations including O, Y, P, and A spool functions. These options allow compatibility with different hydraulic circuit designs and operational requirements.

7. Optional Hydraulic Lock Feature

An optional hydraulic lock can be added to the A and B ports to securely hold hydraulic cylinders in position. This feature improves operational control and safety in lifting and positioning applications.

8. Low Maintenance and Reliable Performance

The RYLSUN P40 hydraulic control valve is designed for reliable long-term operation with minimal maintenance requirements. High-quality internal components and precision sealing systems help reduce wear, improve durability, and minimize downtime.

Why Choose RYLSUN P40 Hydraulic Control Valve?

RYLSUN focuses on delivering dependable hydraulic solutions with consistent quality, efficient performance, and long operational life. The RYLSUN P40 hydraulic control valve offers reliable hydraulic flow control, flexible operating configurations, and robust construction for industrial and mobile hydraulic systems.

With advanced hydraulic design, multiple control options, and durable monoblock construction, the RYLSUN P40 hydraulic control valve is an ideal solution for hydraulic equipment manufacturers, OEMs, and industrial system integrators seeking reliable hydraulic performance.

For product specifications, pricing, and bulk order inquiries, visit our Contact Us page and connect with the RYLSUN team for professional hydraulic solutions.
